E3F/E4F Series
（Output：19≦P<56kW Electronically controlled）
General
Eco-Friendly and High Performance Engine
Sophisticated electronically controlled engine featuring ISEKI technology.
Precise combustion control by a 200MPa common rail system and a dynamic balancer realize low fuel consumption, quietness, and low vibration. The DPF, exhaust gas purification system, complies with Stage V regulations in Europe, the strictest in the world. Optimizing the supercharging system enables a wide range of output from 22 to 56 kW.

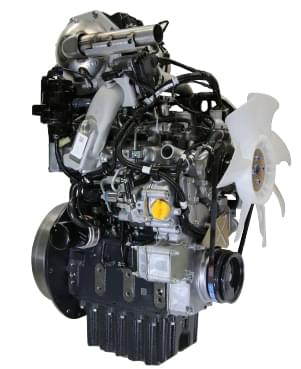

E3FH

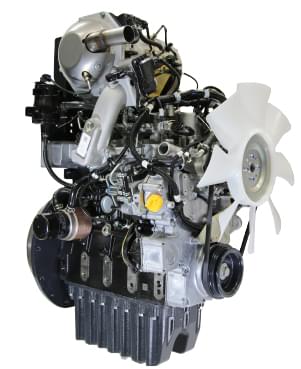

E4FH
Spec
| Item | E3FH-DEB | E3FH-TDEB | E4FH-TDEB | E4FH-TIDEB |
|---|---|---|---|---|
| Emission Regulation | Tier4(EPA/CARB) | Tier4(EPA/CARB) EU Stage V |
← | ← |
| Displacement (L) | 1.826 | ← | 2.434 | ← |
| Number of Cylinders (Z) | 3 | ← | 4 | ← |
| Bore × Stroke (mm) | 87×102.4 | ← | ← | ← |
| Fuel Injection Type | Direct Injection（DI） | ← | ← | ← |
| Forced Induction | NA | Turbocharged | ← | Turbocharged With CAC |
| Aftertreatment System | DOC＋DPF | ← | ← | ← |
| EGR | Cooled EGR | ← | ← | ← |
| Rated Output / Engine Speed | 22.0～27.0kW/ 2600min-1 |
25.0～31.0kW/ 2600min-1 |
33.8～40.0kW/ 2600min-1 |
40.0～55.0kW/ 2600min-1 |
| Injection System | Common Rail | ← | ← | ← |
| Dimensions (Length × Width × Height) |
614×535×928 | 618×535×930 | 723×540×1001 | ← |
| Dry Weight (kg) (With aftertreatment system) |
226 | 230 | 292 | ← |
