E3B/E3C Series
（Output：P<19kW mechanical）
General
Eco-Friendly and Reliable Engine
Lightweight and compact engine for outputs up to 19 kW.
Adapted to the latest emission regulations in Japan, the U.S., and Europe through the use of a highly reliable and durable mechanical injection system. No complicated electrical wiring or computer control is required and the engine can be easily installed in a wide variety of vehicles.

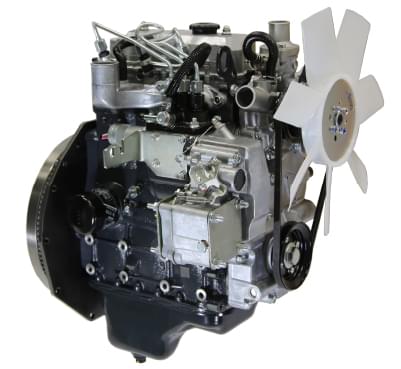

E3B

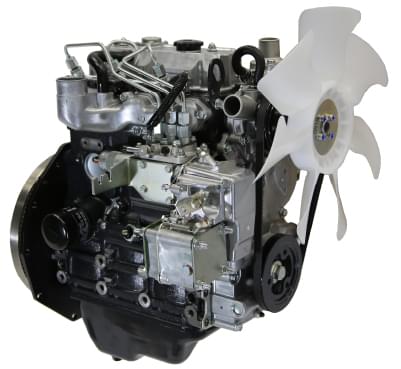

E3CD
Spec
| Item | E3B | E3CD | |||||
|---|---|---|---|---|---|---|---|
| Emission Regulation | Tier4(EPA/CARB) | EU Stage V | China Stage IV | （Japan Domestic Stage II） | Tier4(EPA/CARB) | EU Stage V | （Japan Domestic Stage II） |
| Displacement (L) | 1.123 | ← | ← | ← | 1.498 | ← | ← |
| Number of cylinders (Z) | 3 | ← | ← | ← | 3 | ← | ← |
| Bore x stroke (mm) | 76.2×78 | ← | ← | ← | 87×84 | ← | ← |
| Fuel Injection Type | Indirect Injection（IDI） | ← | ← | ← | Indirect Injection（IDI） | ← | ← |
| Intake System | NA | ← | ← | ← | NA | ← | ← |
|
Rated Output / Engine Speed |
①17.9kW/ 3000min-1 2600min-1 |
16.8kW/ 2600min-1 |
16.3kW/ 2600min-1 |
16.3kW/ 2600min-1 |
17.9kW/ 2600min-1 |
18.9kW/ 2600min-1 |
18.4kW/ 2500min-1 |
| speed regulating system | mechanical | ← | ← | ← | mechanical | ← | － |
| Dimensions (Length × Width × Height) |
535×432×561 | 535×432×561 | 468×430×514 | 524×501×597 | 578×508×650 | 578×508×650 | 634×484×718 |
| Dry weight (kg) (With aftertreatment system) |
94 | 95 | 88 | 103 | 120 | 125 | 143 |
